Electromagnetic compatibility problems are resultant of coexistence of varied technologies and inappropriate installations of electric components.

Electromagnetic interferences lead to the undesirable functioning of the electrical components that might be caused due to sparking of motor brushes, tensions in circuit switches or discharges, emissions in microwave devices or phones. All these results in various alterations and have an adverse effect on communication networks.

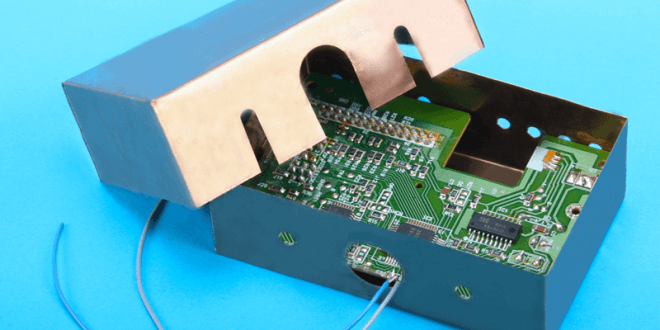

However, EMI shielding or electromagnetic shielding is an emergent technology that has helped a lot to mitigate the effects of electromagnetic interferences. Generally, these interferences are resultant of various incoming and outgoing electrical radiations. Usually, EMI shielding is applied on electrical devices and components to prevent them from getting damaged due to varied frequencies of electromagnetic waves.

Hereunder are some tips on EMI shielding and RFI shielding. Have a look at them.

  1. Effective removal of Heat from Parts of EMI Covers:

Generally, heat is produced in almost every part of the EMI gaskets and covers. To ensure smooth functioning of EMI systems, it is significant to remove the heat.

The heat issues of EMI covers can be solved by way of ventilation holes along the top surfaces of electromagnetic systems. Furthermore, high powered chips are regarded as one of the best heat management activities.

Moreover, to ensure efficient performance of EMI systems with reduced heat emissions, the power chips should be applied to EMI covers prior to their attachment with the circuitry. This mechanism assists in controlling the temperature of the heat and air trapped between the different parts of the EMI systems.

  1. Properly Dealing with Leakages:

Leakages are yet other alarming issues with the electromagnetic systems. They adversely affect the smooth functioning of EMI gaskets and apertures.

As leaks are prominent in nature, it is vital to seal all the access panels and cable openings timely. Therefore, regular inspection of EMI systems for possible leaks should be a part of routine maintenance work and ought to be treated with conductive caulks.

  1. Thorough Inspection of EMI Design and Layout:

So as to ensure smooth, efficient working of EMI systems in long run, it is mandatory to thoroughly inspect the design and layout of these systems. A see-through of window designs with the help of blackened mesh is a must. For thick, finer and dark mesh materials are pre-requisites of efficient EMI shielding systems.

  1. Use of EMI Shielding Gaskets and Apertures:

Making a choice among rubber conducting compounds and cost-effective shielding gaskets is often difficult. In-place EMI shielding gaskets are at the same time cost-effective and expensive.

Shielding gaskets are no doubt expensive from a manufacturing point of view; still, they are cost-efficient when materials and form are in question.

Moreover, faulty installations or wrong placement of gaskets over the surface are the main reasons associated with the failures of EMI gaskets and apertures. In order to avoid the obstacles in the proper functioning of the apertures and gaskets, they should be placed cautiously over rigid, constructive and recessed platforms.
